FREE SPEED

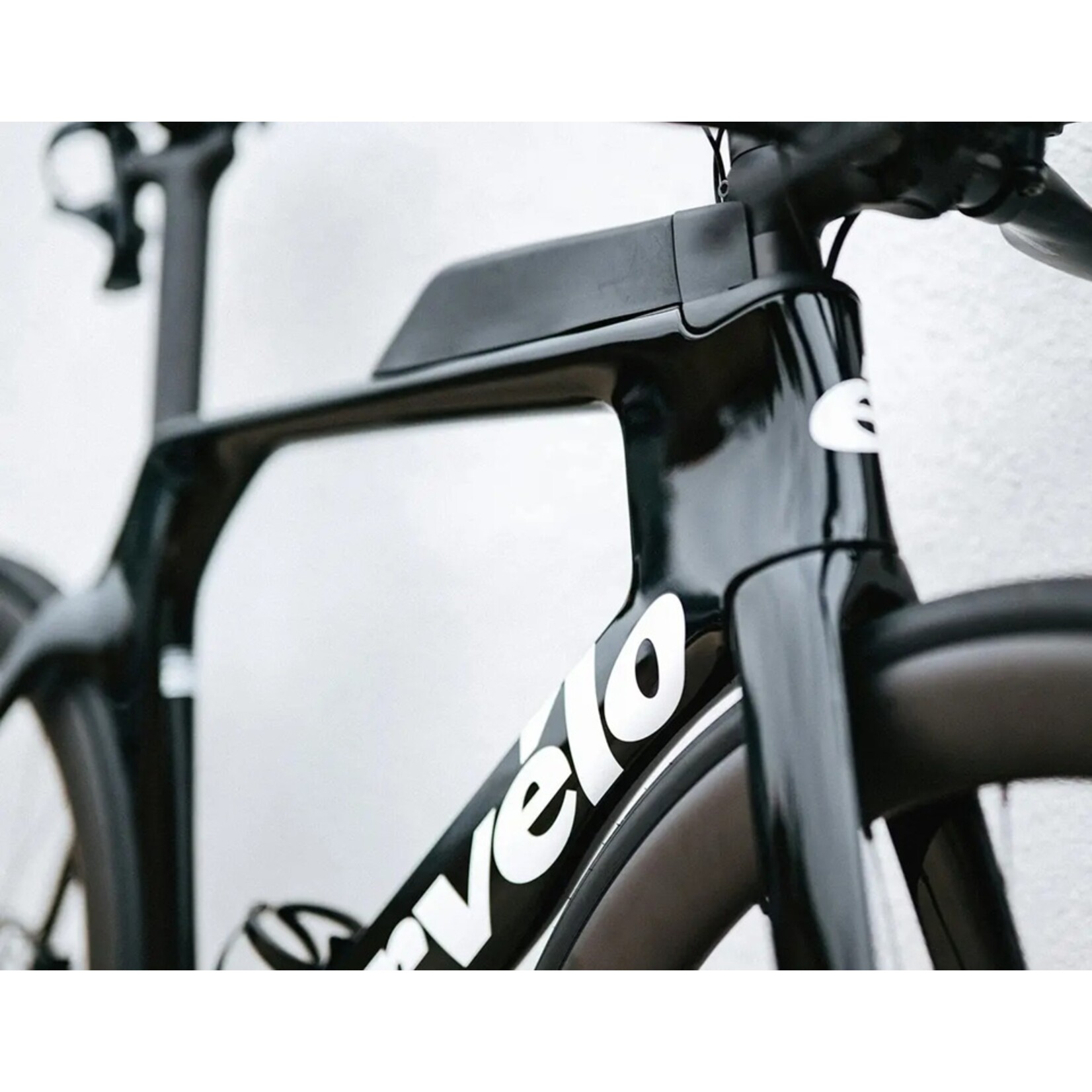

The new P-Series frame is 5.9 grams faster than the outgoing one, but the added tire clearance makes room for the Reserve 52/63 wheels, and 29mm Vittoria tires, which combine for a 30 grams or 3.5 watts savings vs the Reserve 50/Vittoria 28 combo.

N-FRAME STORAGE

New this year on the P-Series, the in-frame storage is designed for a tube, small multi-tool, and a CO2 canister. The hatch is easily removable with or without a bottle in place—just flip the lock and pull.

FUEL FOR THE RUN

In addition to the all-new in-frame storage, we still ship every P-Series with the Smartpak 400, our top tube-mounted bento box, which makes fueling on the bike much simpler without sacrificing aerodynamics.

FIT FOR SPEED

The P-Series is all about adapting to the athlete. Maximum stack increased to 53mm, and we include spacers to bring the basebar up that high. Fitting and positions are evolving, and P-Series offers the most flexibility in an incredibly fast package.

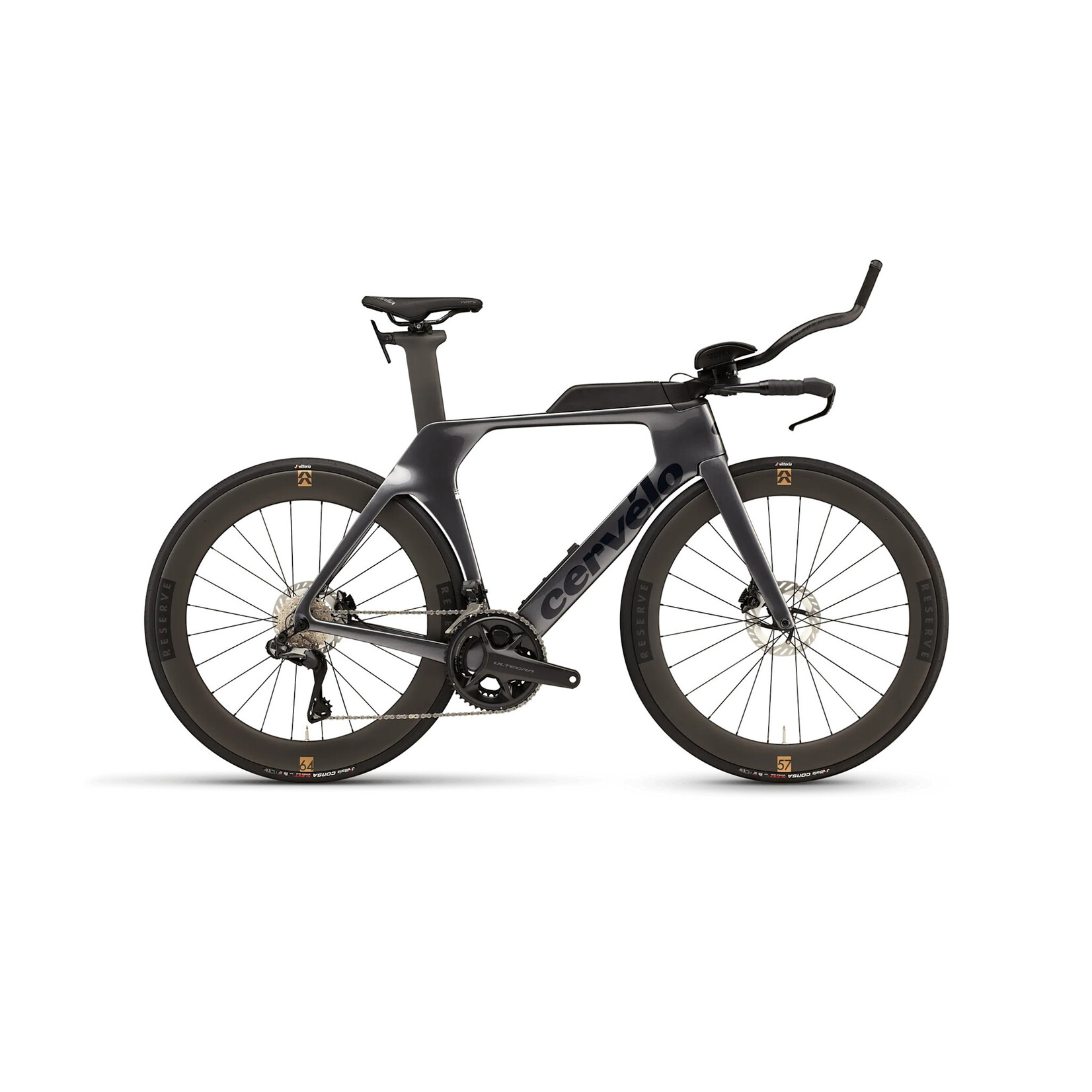

SPEC

Sizes: 48cm, 51cm, 54cm, 56cm, 58cm, 61cm

Fork: Cervélo All-Carbon, Tapered P Fork

Aero Cockpit Assembly: Profile Design Wing 20C+ Evo, 52 ASA, SuperSonic cockpit assembly

Handlebar Sizing:

Size 48 - 38cm
Size 51 - 38cm
Size 54 - 38cm
Size 56 - 38cm
Size 58 - 38cm
Size 61 - 38cm

Stem: Cervélo ST36 Alloy

Stem Sizing:

Size 48 - 70mm
Size 51 - 70mm
Size 54 - 80mm
Size 56 - 80mm
Size 58 - 90mm
Size 61 - 90mm

Seatpost: Cervélo SP23 Carbon

Saddle: Selle Italia WATT Superflow Manganese

Bottom Bracket: FSA, BBright thread together for 24mm spindle

Headset: FSA IS2 1-1/4, 45° x 45° / 1-3/8, 36° x 45°

Front Thru Axle: Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length

Rear Thru Axle: Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length

Front Wheel: Reserve 57TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible

Rear Wheel: Reserve 64TA, DT Swiss 350, 12x142mm, HG freehub 24H, centerlock, tubeless compatible

Tires: Vittoria Corsa N.EXT TLR G2.0 700x29c

Shifter/Brake Levers: Shimano Dura-Ace, R9180

Bar-End Satellite Shifter: Shimano Dura-Ace, SW-R9160

Crankset: Shimano Ultegra, R8100, 52/36T

Power Meter: 4iiii Precision Pro, GEN3+ Dual Sided

Crank Sizing:

Size 48 - 160mm
Size 51 - 165mm
Size 54 - 165mm
Size 56 - 170mm
Size 58 - 170mm
Size 61 - 172.5mm

Chain: Shimano M8100

Cassette: Shimano Ultegra, R8100, 11-30T, 12-Speed

Front Derailleur: Shimano Ultegra, R8150

Rear Derailleur: Shimano Ultegra, R8150

Brake Rotors: Shimano CL800 Centerlock

Accessories:

- Cervélo Rear Hydration Mount
- Cervélo Front Computer/Accessory Mount 810
- Cervélo Smartpak Top Tube Storage Bag 400
- Cervélo In-Frame Storage Rolls - Inner Tube Storage
- Cervélo In-Frame Storage Rolls - Flat Kit Storage
- Profile Design Axis Ultimate Carbon Water Bottle Cage (1 qty)

Max Tire Width (Actual): 34mm
