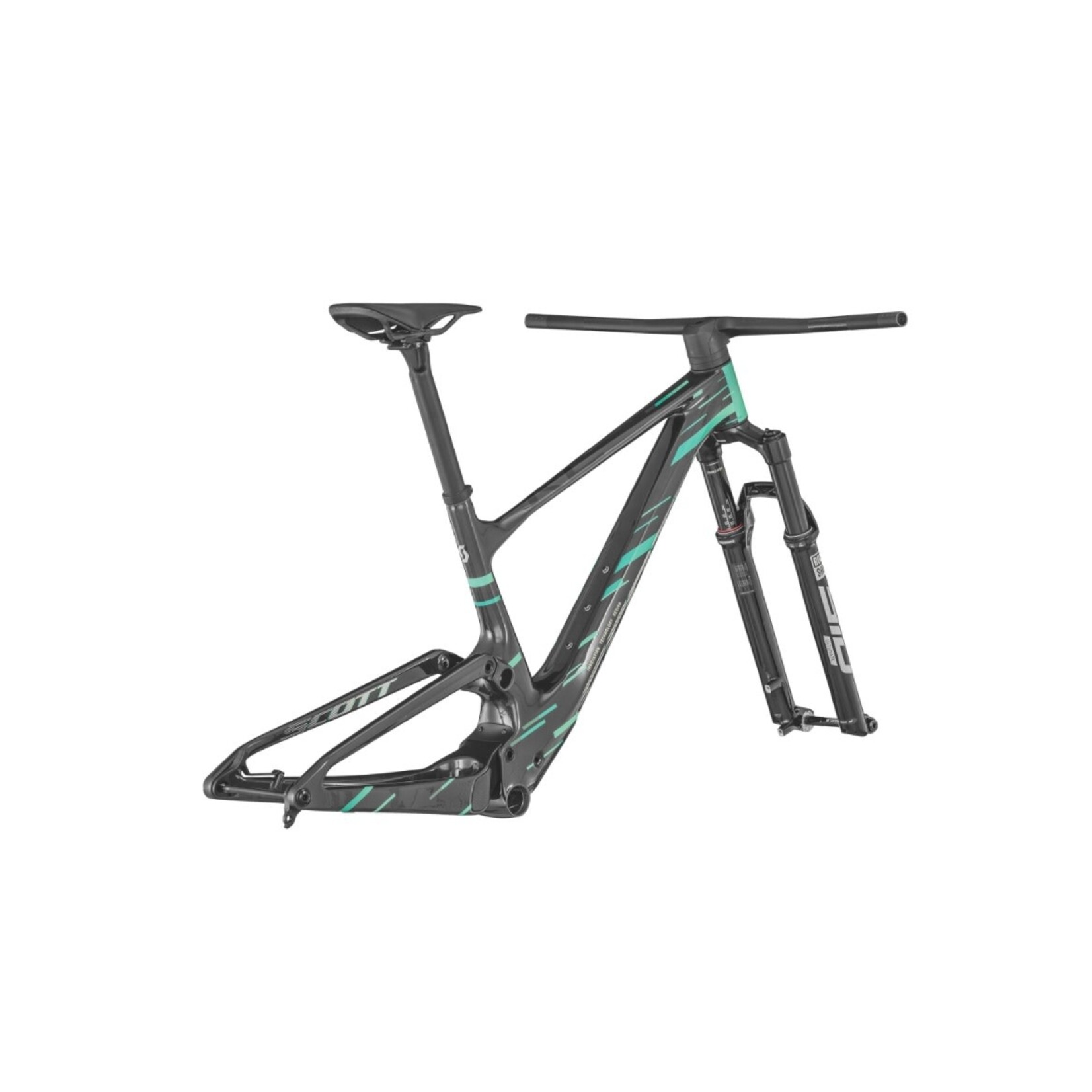

Spark RC Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline

Lockout - 80 - 120mm

RockShox SID Ultimate RD3 Air
Custom Race Day Charger 3-Mode Damper
15x110mm Maxle Stealth / 44mm offset /Tapered steerer
Lockout / Reb. Adj. / 120mm travel

RockShox NUDE 5 RLC3 Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Low Speed Ad.j / Debon Air / Reb. Adj.
T165X45mm

Twinloc 2 Remote Control Shifter Kit
Syncros - Acros Pro Headset System
Syncros Carbon Seatpost, Saddle and Fraser iC Handlebar
Syncros rear axle

Frame incl. Shock 1995g, / 4.4 lbs











								S		M		L		XL
A	head tube angle							67.2 °		67.2 °		67.2 °		67.2 °
B	head tube length							3.5 in		3.5 in		4.1 in		4.5 in
C	top tube horizontal							22.1 in		23.2 in		24.2 in		25.3 in
D	standover height							29.8 in		30.1 in		30.6 in		31.5 in
E	BB offset							-1.8 in		-1.8 in		-1.8 in		-1.8 in
F	BB height							13.0 in		13.0 in		13.0 in		13.0 in
G	wheel base							44.4 in		45.6 in		46.9 in		48.5 in
H	BB center to toptube center
I	BB center to top of seattube							16.3 in		17.3 in		19.3 in		21.3 in
J	seat angle							75.9 °		76.1 °		76.6 °		76.9 °
K	chainstay							17.2 in		17.2 in		17.2 in		17.2 in
L	reach							16.2 in		17.4 in		18.5 in		19.7 in
M	stack							23.7 in		23.7 in		24.3 in		24.6 in
N	stem length							2.0 in		2.4 in		2.8 in		3.1 in
0	trail							4.5 in		4.5 in		4.5 in		4.5 in
P	Fork length							20.9 in		20.9 in		20.9 in		20.9 in
Q	Maximum Seatpost Insertion							5.9 in		6.9 in		8.9 in		10.8 in
R	Crank Length							6.7 in		6.9 in		6.9 in		6.9 in
