This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- XS (27.5"): 5’1” - 5’5”
-
- S (29"): 5’4” - 5’8”
-
- M (29"): 5’7” - 5’10”
-
- L (29"): 5’9” - 6’1”
-
- XL (29"): 6’0” - 6’4”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| XS (27.5") | S (29") | M (29") | L (29") | XL (29") | |
|---|---|---|---|---|---|
| A Seat Tube Length (inch) | 13.6 | 15 | 16.5 | 17.7 | 18.9 |
| A1 Seat Post Insertion Depth (inch) | 12 | 13.4 | 7.9 | 9.3 | 11.5 |
| B Seat Tube Angle | 74.0° | 74.5° | 74.5° | 74.5° | 74.5° |
| C Top Tube Length (inch) | 21.3 | 22.9 | 23.8 | 24.8 | 25.7 |
| D Head Tube Length (inch) | 3.5 | 3.7 | 4.1 | 4.9 | 5.5 |
| E Head Tube Angle | 67.0° | 67.5° | 67.5° | 67.5° | 67.5° |
| F Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| G Trail (inch) | 4.1 | 4.3 | 4.3 | 4.3 | 4.3 |
| H Wheelbase (inch) | 42.7 | 44.8 | 45.8 | 46.9 | 47.9 |
| I Chain Stay Length (inch) | 17.3 | 17.9 | 17.9 | 17.9 | 17.9 |
| J Bottom Bracket Drop (inch) | 1.8 | 2.2 | 2.2 | 2.2 | 2.2 |
| K Stack (inch) | 21.6 | 23.5 | 23.9 | 24.6 | 25.2 |
| L Reach (inch) | 15.2 | 16.3 | 17.2 | 18 | 18.7 |
| M Stand Over Height (inch) | 26.9 | 28.1 | 27.9 | 27.9 | 28 |
| N Handlebar Width (inch) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O Stem Length (inch) | 1.6 | 2 | 2.4 | 2.8 | 3.1 |
| P Crank Length (inch) | 6.7 | 6.7 | 6.7 | 6.7 | 6.9 |
| Q Wheel Size | 27.5" | 29" | 29" | 29" | 29" |
Sizes: 27.5: XS,S, 29: S,M,L,XL,XXL

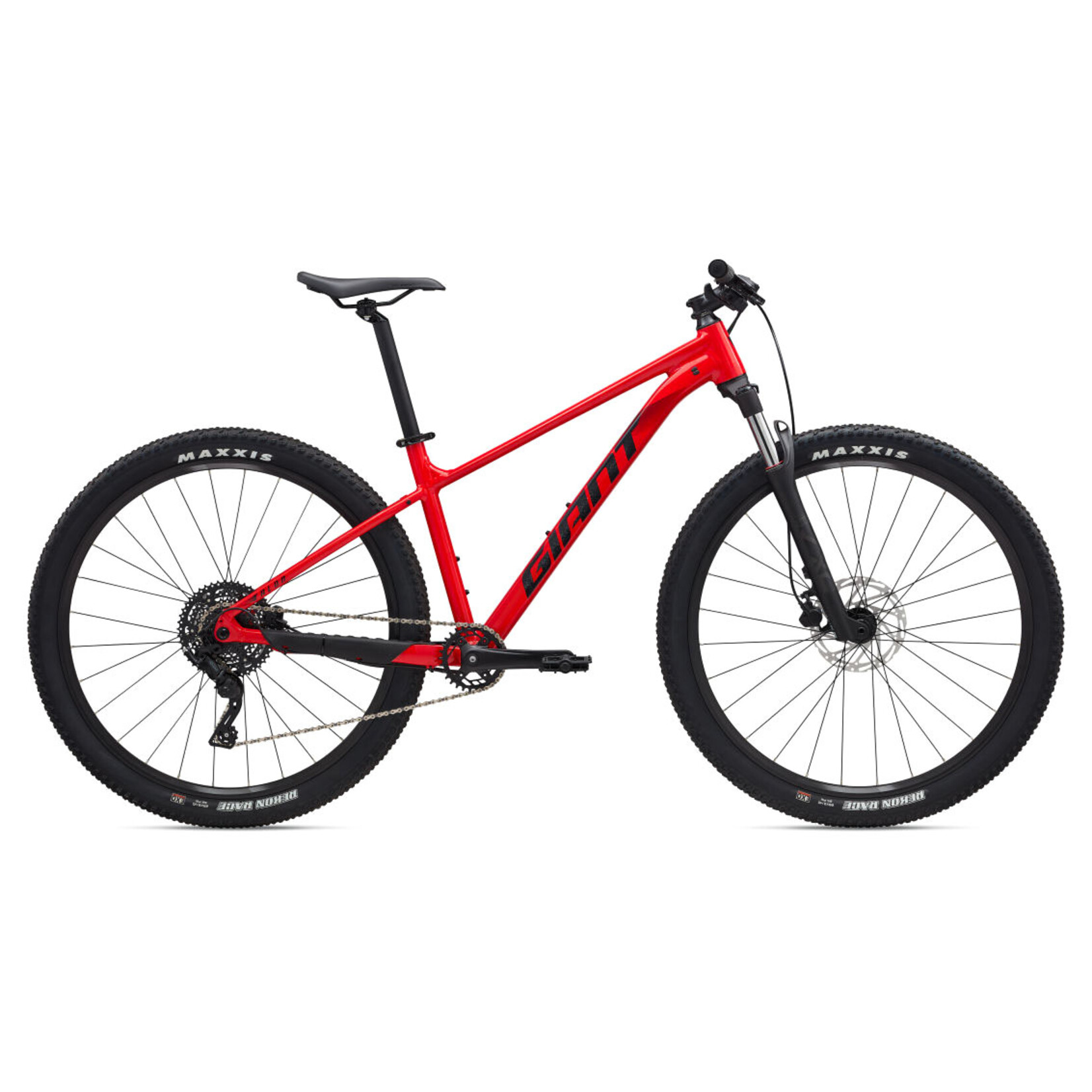

Colors: Asphalt Green, Pure Red
Frame: ALUXX-grade aluminum, disc
Fork: SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
Shock: N/A
Handlebar: Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
Grips: Giant Sole-O
Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)
Seatpost: Giant Sport, 30.9 XS: 350mm (27.5) S: 350mm (27.5) / 375mm (29) M: 375mm (29) L: 375mm (29) XL: 420mm (29) XXL: 420mm (29)
Saddle: Giant ErgoContact Trail
Pedals: MTB caged
Shifters: microSHIFT Advent, 1x9
Front Derailleur: N/A
Rear Derailleur: microSHIFT Advent, clutch
Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HDC M275
Cassette: microSHIFT, 11x46
Chain: KMC X-9
Crankset: ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
Bottom Bracket: cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs: [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive
Spokes: stainless, 14g
Tires: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Extras: 2.4" max tire size
Weight: 13.95 kg (31 lbs 01 oz) - Size (M)
