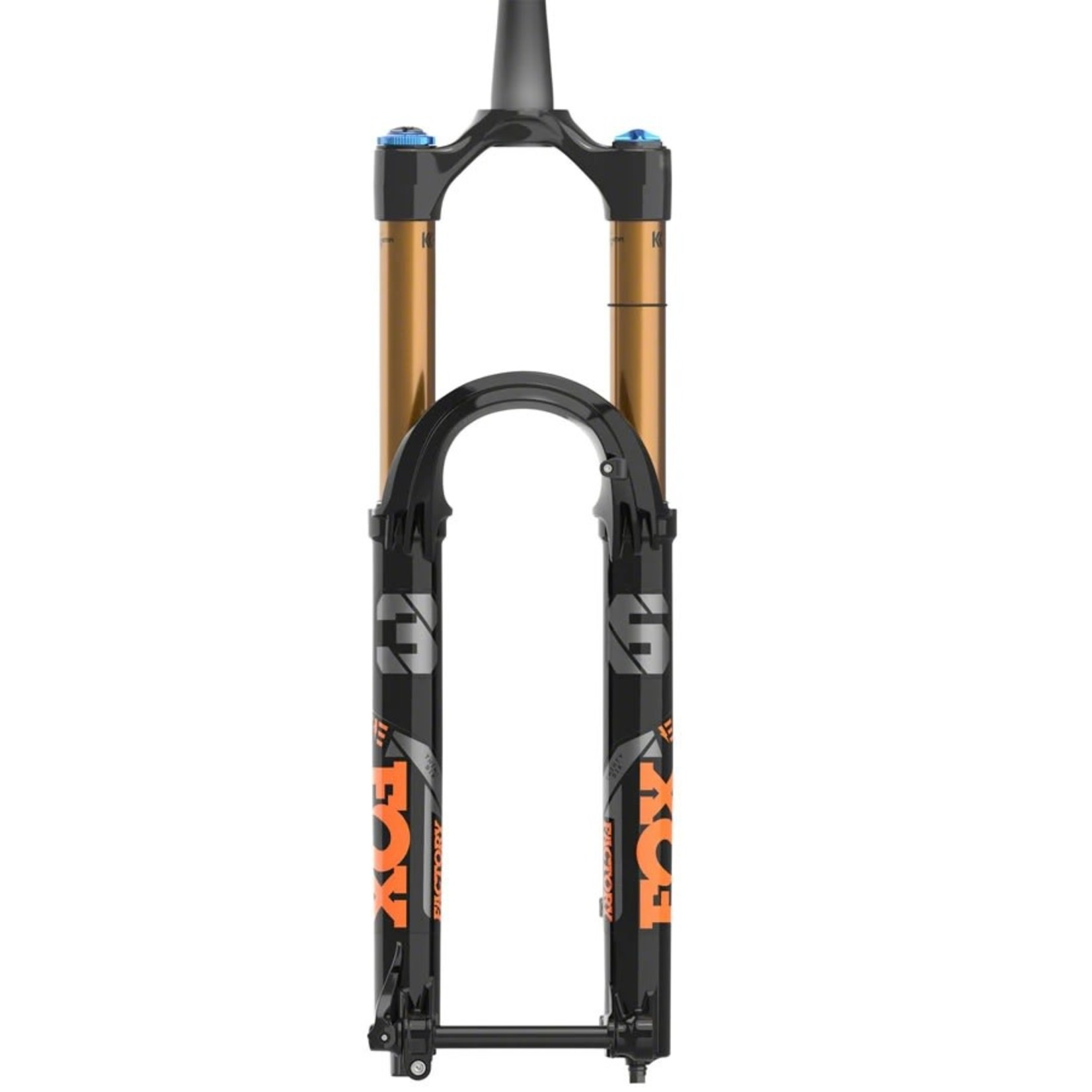

36 E-Optimized Factory forks are made specifically for the rigors of E-Bikes with a stouter chassis and longer durability due to adding material to strengthen critical areas. The design also uses tuning originally done for Enduro use, which fits the needs of the E-MTB and overall E-Bike uses.

• Genuine Kashima Coating on upper tubes
• FIT GRIP2 Damper and FLOAT air spring
• E-Bike Chassis
• Lower Leg Bleeders and Bypass Channels
• Floating axles for perfect alignment

Item Specifications
Axle to Crown Length	571
Brake Type	Post Mount 180
Color	Matte Black
Crown Race	40
Defined Color	Black
Designed for ebike	Yes
External Adjustments	High Speed Compression Damping
Front Axle	15mm Thru x 110mm
Lockout Switch	None
Maximum Tire Width	77
Negative Spring	Air
Offset	51
Positive Spring	Air
S.H.I.S. Stem Clamp Diameter	28.6
Stanchion Diameter	36
Steerer Tube Length (mm)	264
Steerer Type	Tapered
Travel (mm)	160
Wheel Size	27.5+
Wheel Size	29"
